Thermal Insulation Steel Pipe

Published:2025-05-08 | Last Updated: 2025-06-12    Views: 22

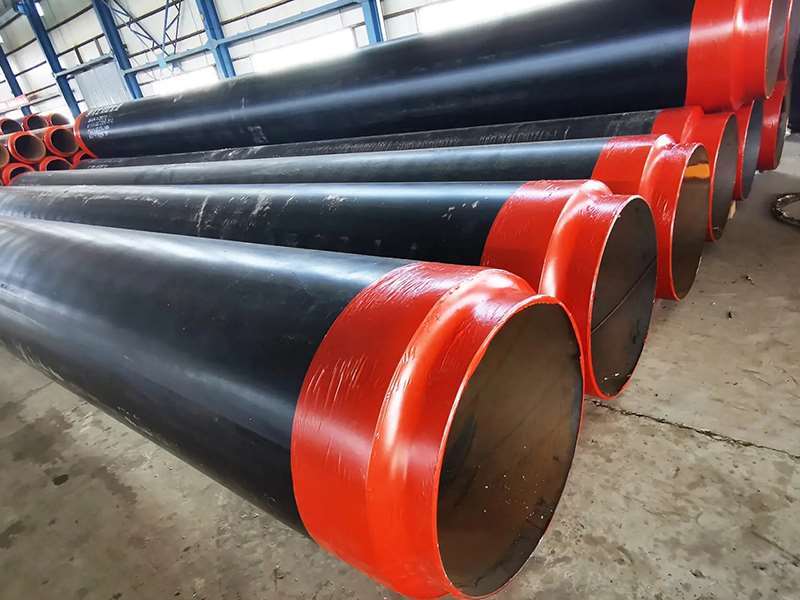

Thermal Insulation Steel Pipe


I. Definition and core of thermal insulation steel pipe


i. Core structure and application of insulated steel pipe

Insulated steel pipe is a composite industrial pipeline that achieves efficient thermal insulation, corrosion resistance and mechanical protection through a three-layer structure. It is widely used in long-distance medium transportation fields such as heating, petroleum, and chemicals.


ii. Its core components are as follows:

(1) Working steel pipe layer

Material and function: Seamless steel pipe or spiral welded pipe, the surface is shot blasted and rust-proofed (reaching Sa2 standard and coated with epoxy resin anti-corrosion layer, directly transporting high-temperature steam (≤450℃), petroleum or chemical media.

Key performance: high strength and pressure resistance, ensuring stable flow of the medium, is the functional core of the insulated steel pipe.

(2) Polyurethane foam (the hallmark material of polyurethane insulated steel pipe):

Hard closed-cell structure, density 60-80kg/m³, thermal conductivity as low as 0.016-0.027W/(m·K), effectively blocking heat transfer.

Applicable temperature: -185℃~120℃ (up to 180℃ after modification), through high-pressure foaming process, it is tightly combined with the steel pipe to form an integrated "pipe in pipe" structure (i.e. polyurethane foam prefabricated insulation pipe).


Other insulation materials (flexibly combined according to working conditions):

Material Properties and Applications

MaterialPropertiesApplications
AluminosilicateHigh-temperature resistance (up to 450℃)Prefabricated Insulated Steam Pipes
Glass WoolSound absorption, thermal insulation, good fire resistanceBuilding ventilation ducts
Rock WoolStrong fire resistance, environmentally friendlyIndustrial scenarios with high fire protection requirements


(3) High-density polyethylene (HDPE):

Thickness ≥ 2.5mm, waterproof, soil corrosion resistant, and mechanical impact resistant, it is the mainstream sheath for polyurethane insulated steel pipes.


Reinforcement materials (special demand scenarios):

Fiberglass reinforced plastics (FRP): Higher weather resistance and pressure resistance, suitable for marine environments or highly corrosive areas.

Galvanized iron sheet: Low cost, suitable for non-direct buried overhead pipelines.


iii. Industrial value of polyurethane foam prefabricated insulation pipes

This type of pipe is prefabricated in the factory to achieve seamless integration of the insulation layer and the steel pipe, ensuring on-site installation efficiency and quality consistency.

For example:

Central heating network: maintain temperature stability for long-distance transportation of hot water;

Petrochemical pipelines: prevent condensation or deterioration of the medium and improve safety.


II.Product features:


Good insulation: heat loss is less than 2%, with aluminum foil reflective layer and inorganic insulation layer, strong insulation effect.

High strength: can withstand 80kN/m² soil pressure, impact resistance 50J/cm², can be buried directly underground without concrete support.

Long service life: anti-corrosion design life of up to 50 years, using cathodic protection and three-layer PE cold wrap tape, good waterproof and anti-corrosion effect.


Thermal Insulation Steel Pipe


III. Comparison table of high-quality and poor-quality steel pipe insulation


Comparison DimensionHigh-Quality Thermal Insulation Steel PipeLow-Quality Thermal Insulation Steel Pipe
Material and StructureThe steel pipe uses seamless steel pipe in accordance with GB/T 8163 or spiral welded pipe in accordance with GB/T 9711, with a wall thickness tolerance of ≤0.3mm. Blast cleaning to Sa2.5 grade, epoxy coating ≥300μm. Three-layer anti-corrosion system (steel pipe + polyurethane + HDPE).The steel pipe uses straight seam pipe instead of seamless pipe, with non-uniform material. Surface with pitting and cracks, blast cleaning not up to standard. The outer protective pipe contains recycled materials or impurities.
Insulation Layer PerformancePolyurethane density ≥60kg/m³, closed-cell rate ≥88%, thermal conductivity ≤0.033W/(m·K). Compressive strength ≥0.3MPa, water absorption rate ≤10%. Service temperature above 120℃, service life ≥30 years.Density ≤50kg/m³, low closed-cell rate (easy to absorb water). Insufficient compressive strength, deforms under pressure. Carbonizes at high temperatures, service life ≤10 years.
Outer Protective Layer QualityHDPE outer protective pipe density ≥940kg/m³, tensile strength ≥19MPa, elongation at break ≥400%. Smooth surface without bubbles, uniform dispersion of carbon black.Uses inferior PE material, density ≤900kg/m³. Rough surface, with depressions or impurities, prone to cracking. Carbon black clumps or unevenly distributed.
Testing and CertificationProvides national-level test reports (certified by CMA/CNAS). Complies with GB/T 29047-2012 standard, including full-range tests such as hydrostatic pressure, flaw detection, and thermal stability.No test reports or forged data. Passed only by appearance inspection, lacks mechanical property tests.
Price and Cost-effectivenessHigher purchase price (steel pipe is more than 30% more expensive than polyurethane pipe). Lower life cycle cost (maintenance costs reduced by 40%-60%).Lower initial price (20%-50% cheaper than high-quality products). Frequent repairs during operation, total cost doubles.


Thermal Insulation Steel Pipe


IV. Application areas of pre insulated pipe


Centralized heat supply: main pipeline of urban heat network (temperature drop≤1℃/40km).

Petrochemical industry: oil pipeline in highly corrosive environment containing Cl->200ppm.

Municipal engineering: hot and cold water circulation system of underground comprehensive pipeline corridor.


V. Standard comparison table of  thermal insulated steel pipe in each country


Country/RegionStandard NameMain Content
ChinaGB/T 29047-2021 "High-Density Polyethylene Outer Sheath Rigid Polyurethane Foam Plastic Prefabricated Direct-Burial Insulated Pipes and Fittings"Specifies the structure, performance requirements, and test methods for prefabricated direct-burial insulated pipes.
ChinaCJ/T 200-2004 "Technical Conditions for Prefabricated Direct-Burial Steam Insulated Pipes for Urban Heating"Covers the manufacturing, inspection, and acceptance standards for prefabricated direct-burial steam insulated pipes.
ChinaCJ/T 114-2000 "High-Density Polyethylene Outer Sheath Polyurethane Foam Plastic Prefabricated Direct-Burial Insulated Pipes"Provides technical requirements for the design, construction, and operation and maintenance of direct-burial steam pipelines.
USAASTM C165 "Standard Test Method for Measuring Compressive Properties of Thermal Insulation"Tests the compressive properties of thermal insulation materials.
USAASTM C195 "Mineral Fiber Thermal Insulation Cement"Specifies the requirements for mineral fiber thermal insulation cement.
USAASTM C303 "Test Method for Density of Rigid Cellular Plastics"Tests the density of rigid cellular plastics.
USAASTM C335 "Standard Test Method for Steady-State Thermal Transmission Properties by Means of the Guarded Hot Plate"Tests the steady-state thermal transmission properties of materials.
USAASTM C449 "Mineral Fiber Water-Repellent Thermal Insulation and Edge Sealing Cement"Specifies the requirements for mineral fiber water-repellent thermal insulation and edge sealing cement.
USAASTM C518 "Standard Test Method for Steady-State Thermal Transmission Properties by Means of the Heat Flow Meter Apparatus"Tests the steady-state thermal transmission properties of materials.
USAASTM C547 "Mineral Fiber Preformed Pipe Insulation"Specifies the requirements for mineral fiber preformed pipe insulation.
USAASTM C552 "Glass Foam Block and Pipe Insulation"Specifies the requirements for glass foam block and pipe insulation.
USAASTM C591 "Unfaced Rigid Polyurethane Foam Thermal Insulation"Specifies the requirements for unfaced rigid polyurethane foam thermal insulation.
USAASTM C592 "Mineral Fiber Blanket Insulation"Specifies the requirements for mineral fiber blanket insulation.
USAASTM C612 "Mineral Fiber Block and Board Thermal Insulation"Specifies the requirements for mineral fiber block and board thermal insulation.
UKBS 5422:2023 "Specification for Thermal Insulation for Pipelines, Tanks, Vessels, Ductwork, and Equipment"Specifies the performance requirements of thermal insulation materials for different operating temperatures.
UKBS EN 448:2025 "District Heating Piping. Bonded Single Pipe Systems. Direct Buried Hot Water Networks. Factory-Made Pipe Components"Specifies the requirements for factory-made pipe components for district heating piping, including steel service pipes, polyurethane thermal insulation, and polyethylene sheath.
EUISO 15516 "Moisture-Resistant Thermal Insulation Systems for the Petroleum and Natural Gas Industries"Specifies the minimum requirements for moisture-resistant thermal insulation systems in the petroleum and natural gas industries, including application, testing, handling, storage, and transportation.
EUISO 8296 "Plastics. Films and Sheets. Determination of Wetting Surface Tension"Specifies the method for determining the wetting surface tension of plastic films and sheets.
EUISO 16770 "Plastics. Polyethylene. Determination of Environmental Stress Cracking (ESC) by Full Notch Creep Test (FNCT)"Specifies the determination of environmental stress cracking of polyethylene.
