Number of visits：62 seconds Update time：2025-12-12
Thermal insulation steel pipe heating industry, energy, heat supply, chemical industry, steam transport, hot water, chemical services, etc. A wide range of user's thoughts: "Can thermal steel pipes be used for a long time? How long can they be used?" Main article: Materials, engineering, environment, operation and construction, five aspects, not compatible with each other, can be produced to extend the lifespan.
Typical lifespan: General quality thermal insulation steel pipe lifespan 20~30 years, specific material quality, insulation layer, preservative layer and usage environment.
Constant viewing factor:
Material quality defects
No antiseptic or insulation layer construction
Highly corrosive environment or high humidity
Movement power or temperature difference
Shortage term limit

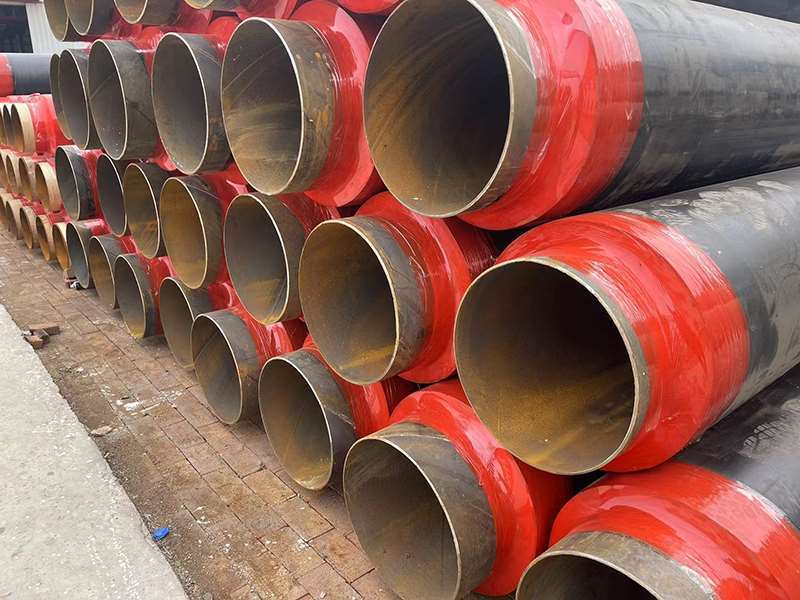

(jpeg).jpg)
1) Pipe material quality
Select cassette steel or low alloy steel, guarantee strength and durability under high temperature and high pressure conditions.
If the steel pipe is compatible with national or international standards (such as GB, EN, ASTM), the thickness and design strength are required.
2) Heat retention layer performance
Insulation material density ≥60kg/m³, low heat resistance, good waterproofness.
Thermal insulation layer is uniformly thick, tightly closed, and the escape hole or fissure.
3) Outer tube and preservative layer
FBE lining or high-density PE pipe for outer pipe clasp, strong antiseptic and waterproof performance.
Burning, law enforcement, and external embalming.
4) Construction work
Plumbing, curvature, and friction.
Temperature protection required for preservative treatment, heat insulation layer construction, and complete construction.
5) Operating conditions
Control steam or hot water temperature is within the control system, and the escape is extremely high.
Use expansion to remove heating and cooling, prevent pipe fatigue.
6) Regular inspection and maintenance
Inspect pipeline joints, welds, insulation layers, and outer protective pipes annually.
If cracks, water seepage or damage to the anti-corrosion layer are found, repair or replace immediately.
7) Industrial heating power pipe operation and operation
| Operation Category | Specific Operation | Standard / Instructions | Expected Outcome |
|---|---|---|---|
| Pipe Selection | Select carbon steel or low-alloy steel | Must comply with GB/T, EN, or ASTM standards; wall thickness must meet design pressure | Improves pressure resistance and reduces fatigue cracking |
| Insulation Construction | Use polyurethane or rock wool with density ≥ 60 kg/m³ | Insulation must be uniform, compact, and free of voids | Stable insulation performance and reduced heat loss |
| Outer Jacket Anti-Corrosion | Apply FBE or HDPE coating on the outer jacket | Weld seams and flanges must receive additional anti-corrosion treatment | Prevents external corrosion and extends service life |
| Installation Work | Avoid pipe collision, bending, or friction | Follow construction specifications | Reduces installation damage and increases service life |
| Joint Treatment | Strengthen corrosion protection at welded joints and flanges | Use anti-corrosion coating or heat-shrink sleeves | Prevents joint corrosion and ensures sealing integrity |
| Operation Control | Control steam/hot-water pressure and temperature | Do not exceed design limits; use expansion joints | Reduces thermal stress and prevents fatigue cracking |
| Inspection & Maintenance | Inspect pipe joints, insulation, and outer jacket annually | Repair cracks or leakage immediately upon discovery | Prevents corrosion spread and ensures safe operation |
| Surface Protection | Clean pipe surface; avoid placing heavy objects | Prevent mechanical damage | Extends the life of the outer protective layer |
.jpg)
1) Waterproofing and preservative performance
The outer pipe must have waterproofing and antiseptic functions, preventing groundwater encroachment.
Outer tube material can be selected from high-density PE or steel tube FBE preservative layer.
Pipe connection, law, 弯头 demand external preservative and sealed processing.
2) Heat retention layer performance
Made of solid wood or rock cotton for insulation, density ≥60kg/m³, waterproof.
The insulation layer was constructed evenly and tightly, the relief cavity, and the cracks fell off.
3) Construction quality
It is necessary to install a preservative and heat insulation layer.
The environment of the soil in front of the landfill, the direct contact pipe with the soil of high acidity or high concentration.
4) Land and environmental factors
Acidic or mineral soil accelerates outer tube rot, and prevents the removal of soil.
Areas with high humidity or high groundwater level, high demand waterproofing, antiseptic and drainage measures.
5) Operations management
Long-term high temperature and cold or super cold operation.
Periodic treatment of the pipe is to avoid excretion or drainage, and prevent local rot from accelerating.
6) Round trip
Regular access to the pipe, keep warm and keep warm.
When the water is broken, the water is removed or the preservative layer is broken and the time is repaired.
7) Clean operation of heating pipes provided by the municipal government
| Operation Category | Specific Operation | Standard / Instructions | Expected Outcome |
|---|---|---|---|
| Outer Jacket Waterproofing & Anti-Corrosion | Use HDPE pipe or steel pipe with FBE coating | Apply additional anti-corrosion layers on joints, flanges, and elbows | Prevents groundwater corrosion and extends pipeline service life |
| Insulation Construction | Polyurethane or rock wool with density ≥ 60 kg/m³ | Insulation must be uniform, compact, and free of voids | Stable thermal insulation and reduced heat loss |
| Joint & Weld Treatment | Apply anti-corrosion and waterproof wrapping on welds and flanges | Follow construction specifications | Prevents joints from becoming corrosion points |
| Soil Environment Treatment | For highly acidic or alkaline soils, add casing or anti-corrosion coating | Avoid direct contact with the outer jacket | Reduces corrosion risk |
| Construction Quality Control | Avoid pipe bending, collision, and friction | Install according to construction standards | Prevents construction damage and ensures pipeline integrity |
| Operation Management | Control hot-water temperature and pressure | Do not exceed design limits; monitor regularly | Prevents excessive thermal expansion/contraction damage |
| Drainage & Settlement Protection | Design buried pipelines with proper drainage to avoid water accumulation | Use drainage pipes or sand layer protection | Prevents localized water corrosion |
| Inspection & Maintenance | Periodically inspect joints, welds, and insulation | Annual or operational cycle inspections | Detect and repair damage promptly, extending service life |
1) Inner pipe material quality
Corrosion resistant materials such as acid, porcelain, and glass solutions are recommended for use in corrosion resistant steel or internal plastic pipes (like PE, PP, and glass tubes).
Material quality conforms to rot resistant standards, prevents long-term erosion and perforation.
2) Heat retention layer performance
Thermal insulation layer is non-absorbent, chemical corrosion resistant, and commonly used high-density polyester or glass cotton.
The insulation layer construction is uniform and tight, preventing cavities from falling off.
3) Preservative
The inner layer of the pipe and the outer layer are preservative.
Preservative layer resistant to high temperature chemical agents and corrosion, prevention of internal and external corrosion.
4) Movement control
Avoidance of high acidity and high oxidation quality for long periods of stagnation, prevention of local rot.
Controlling power and temperature within the system, avoiding heat and cooling power.
5) Round trip
Regularly used rotary test equipment (measurement thickness, rotary speed rate) pipe pipe.
The first step is to break down the structure and repair or replace it.
6) Construction quality
Guaranteed damage to machinery during the construction period.
Encounter, Law Enforcement, Preservation Law Requirements.
7) Clean operation of chemical and corrosion control pipes
| Operation Category | Specific Operation | Standard / Instructions | Expected Outcome |
|---|---|---|---|
| Inner Pipe Material Selection | Use corrosion-resistant stainless steel or lined plastic pipes (PE/PP/epoxy) | Comply with corrosion-resistance standards; wall thickness meets design pressure | Prevents medium corrosion and perforation, extends service life |
| Insulation Construction | Use high-density polyurethane or glass wool | Insulation must be uniform, compact, and free of voids | Stable insulation performance and protects insulation layer from medium intrusion |
| Anti-Corrosion Process | Double-layer protection: inner lining + outer coating; pipe ends sealed with blocking agent | Anti-corrosion layer resistant to high temperature and chemical media | Provides dual internal and external protection, prolonging service life |
| Joint Treatment | Apply anti-corrosion wrapping on welds, flanges, and pipe ends | Use heat-shrink sleeves or anti-corrosion coatings | Prevents joint corrosion and ensures sealing integrity |
| Operation Control | Avoid stagnation of highly acidic or alkaline media; control pressure and temperature | Operate within design limits | Reduces localized corrosion and thermal expansion/contraction stress |
| Inspection & Maintenance | Regular thickness measurement and corrosion detection | Inspect every six months or annually using corrosion instruments | Detect and repair corrosion points promptly, extending pipeline life |
| Construction Protection | Prevent collisions or scratches during construction | Follow construction specifications | Ensures integrity of inner pipe and insulation layer; prevents early damage |
Select materials: pipe material, antiseptic layer, insulation layer.
Construction details: Installation, heat sealing, antiseptic, heat insulation integrated construction, and sealing.
Environmental protection: Evacuation machinery damage, soil rot, water extraction.
Periodic tours are scheduled to be completed or replaced.
Operation management: avoidance, temperature change and intervention quality are always different.
