Published:2025-10-10 | Last Updated: 2025-10-10 Views: 79

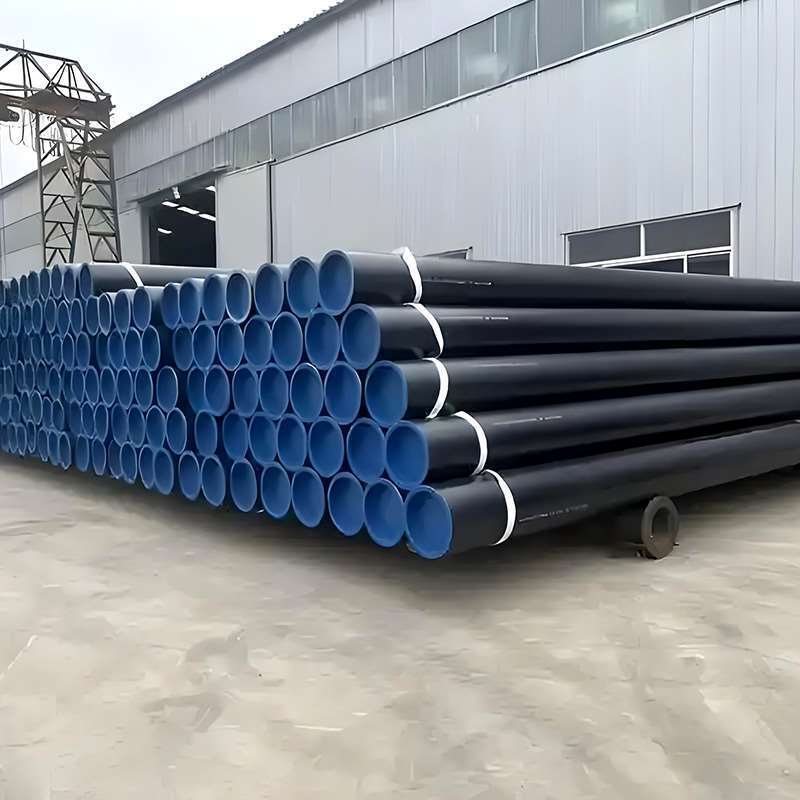

ASTM A53 Grade B seamless steel pipe is a high-quality carbon steel seamless pipe conforming to ASTM A53 Grade B requirements. The pipe exhibits excellent strength, toughness, and pressure resistance, making it suitable for low- and medium-pressure as well as high-pressure pipeline systems.
Standard and Grade Definitions
ASTM: American Society for Testing and Materials standard, specifying chemical composition, mechanical properties, and testing methods for pipes.
A53: ASTM steel pipe standard designation, applicable to seamless and welded carbon steel pipes primarily used for conveying water, steam, oil, and gas.
Grade B: A designation within the A53 standard featuring moderate carbon content and strength, suitable for most medium-low pressure and high-pressure pipeline applications.
| Parameter Name | Parameter Description | Typical Value / Range | Remarks |
|---|---|---|---|
| Standard | Execution Standard | ASTM A53 / ASME SA53 | American Standard |
| Grade | Grade Classification | Grade B | Higher strength than Grade A |
| Manufacturing Method | Production Type | Seamless | Hot-rolled or cold-drawn |
| Outside Diameter Range (OD) | Inches or Millimeters | 1/8” – 26” (10.3 mm – 660 mm) | Large diameters customizable |
| Wall Thickness Range (WT) | Inches or Millimeters | SCH 10 – SCH 160 / 1.5 mm – 60 mm | Per Schedule standards |
| Length | Fixed or Random | 5.8 m, 6 m, 11.8 m, 12 m | Cut-to-length available |
| Material | Chemical Composition | C ≤ 0.30 %, Mn 0.29–1.06 %, P ≤ 0.035 %, S ≤ 0.035 % | Typical values |
| Tensile Strength | Minimum Requirement | ≥ 415 MPa (60,000 psi) | |
| Yield Strength | Minimum Requirement | ≥ 240 MPa (35,000 psi) | |
| Elongation | Minimum Requirement | ≥ 30 % | Per ASTM A53 requirement |
| Applicable Medium | Common Uses | Water, gas, steam, air, oil | Suitable for pressure piping |
| Applicable Temperature | Temperature Range | –20 °C – 425 °C | Fit for medium-temperature service |
| End Finish (Ends) | Connection Type | Plain Ends (PE), Beveled Ends (BE), Threaded (NPT) | Per project requirement |
| Surface Treatment (Surface) | Protection Form | Black pipe, varnish, anti-rust oil, galvanized | Hot-dip galvanizing is an A53 option |
| Testing Method (Testing) | Non-Destructive Testing | Hydrostatic test, ultrasonic test, eddy-current test | Pre-shipment inspection |
| Dimensional Tolerance (Tolerance) | Per Standard Requirement | ±1 % OD, ±12.5 % WT | ASTM A530 tolerance specification |

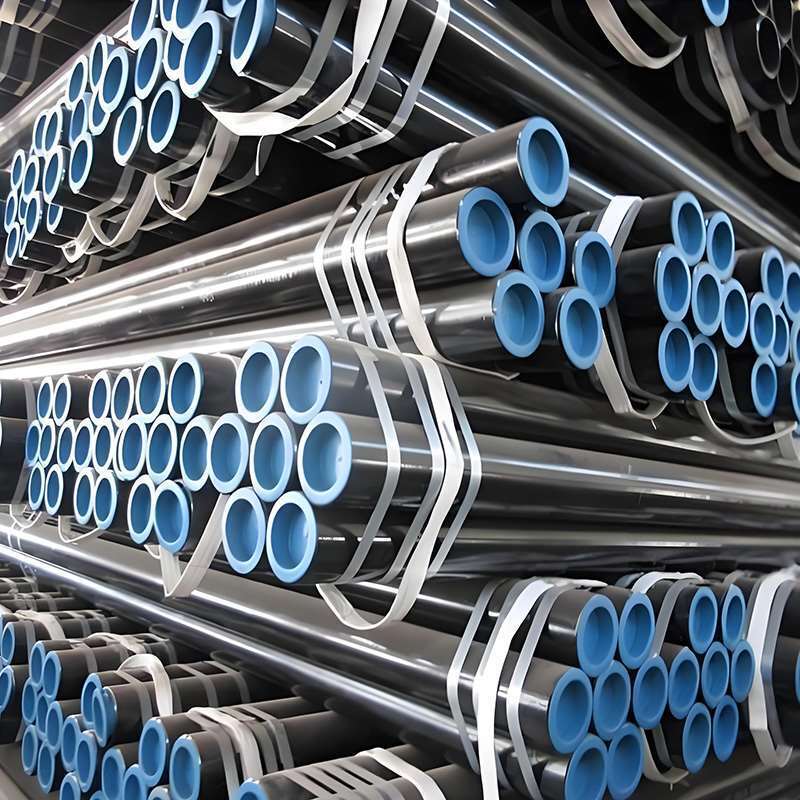

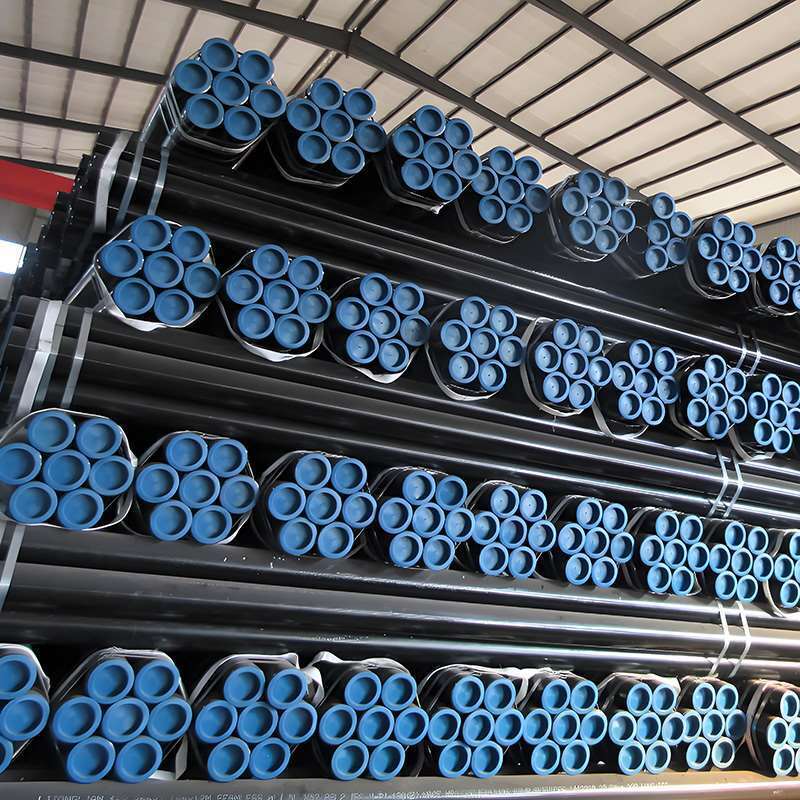

| Packing Method (Packing) | Export Standard | Plastic caps, waterproof cloth, steel-band bundling | Sea-worthy packing |
| Application Fields (Applications) | Common Uses | Water & drainage piping, mechanical structures, chemical transport, boiler tubes | Suitable for multiple industries |
High-quality carbon steel billets conforming to ASTM A53 standards are selected to ensure the chemical composition of the steel pipe meets requirements, thereby guaranteeing process stability and mechanical properties of the final product.
The steel billets are heated to an appropriate temperature (1150°C–1250°C). Uniform heating eliminates internal stresses, enhances the steel's ductility, and ensures smooth subsequent extrusion or rolling processes.
Piercing technology transforms steel billets into hollow tube blanks, followed by sizing machines to control the pipe's diameter and wall thickness. This step ensures pipes meet standard dimensions and prevents deviations during production.
Steel pipes undergo multi-pass rolling to adjust dimensions and further enhance surface quality. Post-rolling, the tubes undergo controlled cooling to optimize mechanical properties such as tensile strength and ductility.
Tubes undergo annealing or normalizing to relieve internal stresses and enhance toughness and corrosion resistance. This process extends service life, particularly for demanding industrial applications like oil and gas transmission.
The steel pipe surface undergoes acid pickling to remove scale and impurities, ensuring surface finish. Superior surface quality enhances corrosion resistance and reduces long-term maintenance costs.
Ultrasonic, radiographic, or other non-destructive testing is performed to ensure the absence of internal defects. Concurrently, mechanical property tests (such as tensile, bending, and hardness tests) are conducted to verify compliance with ASTM A53 Grade B standards.
After passing final inspection, steel pipes are cut and packaged according to customer specifications to prevent damage during transportation. Qualified products are accompanied by relevant quality certificates to guarantee customer requirements.
| Standard No. | Full Title | Primary Application | Remarks |
|---|---|---|---|
| ASTM A53 | Standard Specification for Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and Seamless | Piping for water, gas, and mechanical structures | Covers Grade A and Grade B |
| ASTM A106 | Standard Specification for Seamless Carbon Steel Pipe for High-Temperature Service | Oil & gas, chemical and high-temperature transmission systems | Often compared with A53 |
| ASTM A333 | Standard Specification for Seamless and Welded Steel Pipe for Low-Temperature Service | Cryogenic engineering, liquefied gases, etc. | Multiple grades (e.g., Gr.1, Gr.6) |
| ASTM A334 | Seamless and Welded Carbon and Alloy-Steel Tubes for Low-Temperature Service | Similar to A333 but for more severe conditions | |
| ASTM A179 | Seamless Cold-Drawn Low-Carbon Steel Heat-Exchanger and Condenser Tubes | Heat-exchange equipment, condenser tubes | |
| ASTM A210 | Seamless Medium-Carbon Steel Boiler Tubes | High-pressure boilers, heating systems | |
| ASTM A213 | Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes | High-temperature steam lines | Includes materials such as T11, T22 |
| ASTM A519 | Seamless Carbon and Alloy Steel Mechanical Tubing | Precision machinery, automotive parts | Non-pressure applications |
| ASTM A312 | Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes | Chemical, food processing, etc. | Materials such as 304, 316L |
| Grade | Chemical Composition Feature | Strength Requirement | Typical Application | Welded / Seamless Allowed |
|---|---|---|---|---|
| Grade A | Low carbon content (≤ 0.25 %) | Lower tensile strength | General water and gas transmission | Welded or seamless |
| Grade B | Slightly higher carbon content (≤ 0.30 %) | Higher strength (≥ 415 MPa) | High-pressure transmission, mechanical structures | Welded or seamless |
| Test Item | ASTM A53 Requirement | Typical Test Value | Remarks |
|---|---|---|---|
| Chemical Composition: Carbon (C) | ≤ 0.30 % | 0.28 % | Controls strength and weldability |
| Chemical Composition: Manganese (Mn) | 0.29 – 1.06 % | 0.95 % | Increases strength and toughness |
| Chemical Composition: Phosphorus (P) | ≤ 0.035 % | 0.025 % | Reduces brittleness |
| Chemical Composition: Sulfur (S) | ≤ 0.035 % | 0.020 % | Affects welding performance |
| Chemical Composition: Copper (Cu) | ≤ 0.40 % (optional) | 0.10 % | Enhances corrosion resistance |
| Chemical Composition: Nickel (Ni) | ≤ 0.40 % (optional) | 0.05 % | |
| Chemical Composition: Chromium (Cr) | ≤ 0.40 % (optional) | 0.08 % | |
| Chemical Composition: Molybdenum (Mo) | ≤ 0.15 % (optional) | 0.02 % |
| Test Item | ASTM A53 Requirement | Typical Test Value | Remarks |
|---|---|---|---|
| Tensile Strength | ≥ 415 MPa (60,000 psi) | 440 MPa | Tensile-performance test |
| Yield Strength | ≥ 240 MPa (35,000 psi) | 265 MPa | |
| Elongation | ≥ 30 % | 32 % | ASTM A53 Table X4.1 |
| Hardness | Not mandatory | HB 135 | For reference only |
| Test Item | ASTM A53 Requirement | Typical Test Value / Result | Remarks |
|---|---|---|---|
| Hydrostatic Test | No leakage, no distortion | Test pressure ≥ 5 MPa (725 psi) | Performed on every pipe before shipment |
| Ultrasonic Testing (UT) | No lamination, no cracks, no inclusions | Pass | Refer to ASTM E213 |
| Eddy-Current Testing (ET) | Detected defect depth ≤ 5 % WT | Pass | Refer to ASTM E309 |
| Visual Inspection | No cracks, laps or indentations on surface | Pass | Visual examination |
| Dimensional Check | OD ±1 %, WT ±12.5 % | Pass | Per ASTM A530 requirements |
| Test Item | ASTM A53 Requirement | Typical Test Value / Result | Remarks |
|---|---|---|---|
| Straightness | ≤ 1.5 mm per 3 m | 1.0 mm | |
| Ovality | ≤ 2 % of OD | 1.2 % | |
| Pipe Ends | Flush and burr-free | Pass | Can be beveled or threaded |
| Surface Condition | No cracks, pits or weld spatter allowed | Pass | Manual + automatic inspection before shipment |
